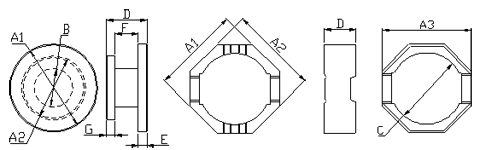

CDRH8D28~CDRH8D58
![](/images/p/cdrh_5_02.gif)
型号 | 产品规格 | 尺寸(mm) | A1 | A2 | A3 | B | C | D | E | F | G | CDRH8D28 | DR-8.0-5.8-2.7-3.5 | 8.0±0.1 | 5.8±0.1 | | 3.5±0.1 | | 2.7±0.1 | 0.6±0.1 | 1.5±0.1 | 0.6±0.1 | RI-8.0-2.1-6.5 | 8.0±0.15 | 8.0±0.15 | 8.0±0.15 | | 6.5±0.15 | 2.1±0.15 | | | | CDRH8D28 | DR-8.0-5.8-2.7-3.8 | 8.0±0.1 | 5.8±0.1 | | 3.8±0.1 | | 2.7±0.1 | 0.6±0.1 | 1.5±0.1 | 0.6±0.1 | RI-8.0-2.1-6.5 | 8.0±0.15 | 8.0±0.15 | 8.0±0.15 | | 6.5±0.15 | 2.1±0.15 | | | | CDRH8D38 | DR-8.0-5.8-3.7-3.6 | 8.0±0.1 | 5.8±0.1 | | 3.6±0.1 | | 3.7±0.1 | 0.8±0.1 | 2.1±0.1 | 0.8±0.1 | RI-8.0-2.9-6.5 | 8.0±0.15 | 8.0±0.15 | 8.0±0.15 | | 6.5±0.15 | 2.9±0.15 | | | | CDRH8D38 | DR-8.0-5.8-3.7-4.0 | 8.0±0.1 | 5.8±0.1 | | 4.0±0.1 | | 3.7±0.1 | 0.8±0.1 | 2.1±0.1 | 0.8±0.1 | RI-8.0-2.9-6.5 | 8.0±0.15 | 8.0±0.15 | 8.0±0.15 | | 6.5±0.15 | 2.9±0.15 | | | | CDRH8D43 | DR-8.0-5.8-4.2-3.6 | 8.0±0.1 | 5.8±0.1 | | 3.6±0.1 | | 4.2±0.1 | 0.8±0.1 | 2.6±0.1 | 0.8±0.1 | RI-8.0-3.4-6.5 | 8.0±0.15 | 8.0±0.15 | 8.0±0.15 | | 6.5±0.15 | 3.4±0.15 | | | | CDRH8D43 | DR-8.0-5.8-4.2-4.0 | 8.0±0.1 | 5.8±0.1 | | 4.0±0.1 | | 4.2±0.1 | 0.8±0.1 | 2.6±0.1 | 0.8±0.1 | RI-8.0-3.4-6.5 | 8.0±0.15 | 8.0±0.15 | 8.0±0.15 | | 6.5±0.15 | 3.4±0.15 | | | | CDRH8D58 | DR-8.0-5.8-5.7-4.0 | 8.0±0.1 | 5.8±0.1 | | 4.0±0.1 | | 5.7±0.1 | 1.0±0.1 | 3.7±0.1 | 1.0±0.1 | RI-8.0-4.7-6.5 | 8.0±0.15 | 8.0±0.15 | 8.0±0.15 | | 6.5±0.15 | 4.7±0.15 | | | | CDRH8D58 | DR-8.0-5.8-5.7-4.2 | 8.0±0.1 | 5.8±0.1 | | 4.2±0.1 | | 5.7±0.1 | 1.0±0.1 | 3.7±0.1 | 1.0±0.1 | RI-8.0-4.7-6.5 | 8.0±0.15 | 8.0±0.15 | 8.0±0.15 | | 6.5±0.15 | 4.7±0.15 | | | |
|
