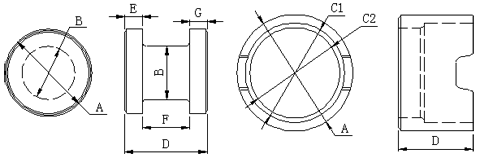

CDRH7045~CDRH12575
![](/images/p/cdrh_9_02.gif)
型号 | 产品规格 | 尺寸(mm) | A | B | C1 | C2 | D | E | F | G | CDRH7045 | DR-5.25-4.2-2.6 | 5.25±0.1 | 2.65±0.1 | | | 4.2±0.1 | 0.8±0.1 | 2.6±0.1 | 0.8±0.1 | RI-7.0-3.9-6 | 7.0±0.15 | | 6.0±0.15 | 5.4±0.1 | 3.9±0.1 | | | | CDRH7045 | DR-5.25-4.2-3.2 | 5.25±0.1 | 3.2±0.1 | | | 4.2±0.1 | 0.8±0.1 | 2.6±0.1 | 0.8±0.1 | RI-7.0-3.9-6 | 7.0±0.15 | | 6.0±0.15 | 5.4±0.1 | 3.9±0.1 | | | | CDRH7055 | DR-5.25-5-2.8 | 5.25±0.1 | 2.8±0.1 | | | 5.0±0.1 | 0.9±0.1 | 3.2±0.1 | 0.9±0.1 | RI-7-4.55-6 | 7.0±0.15 | | 6.0±0.15 | 5.4±0.1 | 4.55±0.1 | | | | CDRH7055 | DR-5.25-5-3.2 | 5.25±0.1 | 2.8±0.1 | | | 5.0±0.1 | 0.9±0.1 | 3.2±0.1 | 0.9±0.1 | RI-7-4.55-6 | 7.0±0.15 | | 6.0±0.15 | 5.4±0.1 | 4.55±0.1 | | | | CDRH12555 | DR-9.6-4.5-4.5 | 9.6±0.15 | 4.5±0.12 | | | 4.5±0.1 | 0.8±0.1 | 2.9±0.1 | 0.8±0.1 | RI-12.2-4.2-10.4 | 12.2±0.2 | | 10.4±0.2 | 10.1±0.2 | 4.2±0.2 | | | | CDRH12565 | DR-9.6-5.5-5.5 | 9.6±0.15 | 5.5±0.12 | | | 5.5±0.1 | 0.9±0.1 | 3.7±0.1 | 0.9±0.1 | RI-12.2-5.2-10.4 | 12.2±0.2 | | 10.4±0.2 | 10.1±0.2 | 5.2±0.2 | | | | CDRH12575 | DR-9.6-6.5-6.0 | 9.6±0.15 | 6.0±0.12 | | | 6.5±0.1 | 1.0±0.1 | 4.5±0.1 | 1.0±0.1 | RI-12.2-6.2-10.4 | 12.2±0.2 | | 10.4±0.2 | 10.1±0.2 | 6.2±0.2 | | | |
|
