CDRH2D18
Model No.
品名 | Test Condition
测试条件 | Inductance
电感(μH) | Tolerance
公差(%) | DC resistance
直流电阻MAX(mΩ) | Rated current
额定电流(mA) | | CDRH2D18-2R2M | 100KHz,0.3V | 2.2 | ±20 | 41 | 850 | | CDRH2D18-3R3M | 100KHz,0.3V | 3.3 | ±20 | 54 | 750 | | CDRH2D18-4R7M | 100KHz,0.3V | 4.7 | ±20 | 78 | 630 | | CDRH2D18-6R8M | 100KHz,0.3V | 6.8 | ±20 | 106 | 520 | | CDRH2D18-100M | 100KHz,0.3V | 10.0 | ±20 | 180 | 430 | | CDRH2D18-150M | 100KHz,0.3V | 15.0 | ±20 | 220 | 350 | | CDRH2D18-220M | 100KHz,0.3V | 22.0 | ±20 | 320 | 300 | | CDRH2D18-330M | 100KHz,0.3V | 33.0 | ±20 | 460 | 240 | | CDRH2D18-470M | 100KHz,0.3V | 47.0 | ±20 | 660 | 200 |
特长：
FEATURES:
数量/卷：3,500PCS。

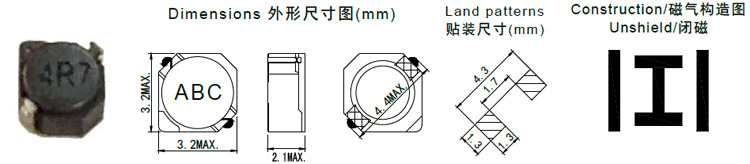

Quantity/reel: 3,500PCS. 产品小型化，方形3.2mm MAX，高度2.1mm MAX。
Small product, quadrate 3.2mm MAX. Height 2.1mm MAX. 载带包装，适用于SMT。
Carrier tape packing, use for SMT. 适用于回流焊SMT工艺。
Suitable for reflow soldering. 广泛应用于数码相机、扫描仪、升降压转换器、磁带录像机电源、液晶显示组件、便携终端设备、笔记本电脑等。
Widely use in Digital camera & scanner/DC-DC converter/Power supply for VTR/LCD monitor/Portable terminal equipment/Notebook etc.
|
