SDR1210
Model No.
品名 | Test Condition
测试条件 | Inductance
电感(μH) | Tolerance
公差(%) | DC resistance
直流电阻MAX(Ω) | Rated current
额定电流(A) | | SDR1210-1R0M | 100KHz,0.3V | 1.0 | ±20 | 0.50 | 0.445 | | SDR1210-1R5M | 100KHz,0.3V | 1.5 | ±20 | 0.60 | 0.400 | | SDR1210-1R8M | 100KHz,0.3V | 1.8 | ±20 | 0.70 | 0.390 | | SDR1210-2R2M | 100KHz,0.3V | 2.2 | ±20 | 0.80 | 0.370 | | SDR1210-2R7M | 100KHz,0.3V | 2.7 | ±20 | 0.90 | 0.320 | | SDR1210-3R3M | 100KHz,0.3V | 3.3 | ±20 | 1.00 | 0.300 | | SDR1210-4R7M | 100KHz,0.3V | 4.7 | ±20 | 1.20 | 0.270 | | SDR1210-5R6M | 100KHz,0.3V | 5.6 | ±20 | 1.30 | 0.250 | | SDR1210-6R8M | 100KHz,0.3V | 6.8 | ±20 | 1.50 | 0.240 | | SDR1210-8R2M | 100KHz,0.3V | 8.2 | ±20 | 1.60 | 0.255 | | SDR1210-100M | 100KHz,0.3V | 10.0 | ±20 | 1.80 | 0.190 | | SDR1210-150M | 100KHz,0.3V | 15.0 | ±20 | 2.20 | 0.170 | | SDR1210-180M | 100KHz,0.3V | 18.0 | ±20 | 2.50 | 0.160 | | SDR1210-220M | 100KHz,0.3V | 22.0 | ±20 | 2.80 | 0.150 | | SDR1210-270M | 100KHz,0.3V | 27.0 | ±20 | 3.10 | 0.125 | | SDR1210-330M | 100KHz,0.3V | 33.0 | ±20 | 3.50 | 0.115 | | SDR1210-390M | 1KHz,0.3V | 39.0 | ±20 | 3.90 | 0.110 | | SDR1210-470M | 1KHz,0.3V | 47.0 | ±20 | 4.30 | 0.100 | | SDR1210-560M | 1KHz,0.3V | 56.0 | ±20 | 4.90 | 0.085 | | SDR1210-680M | 1KHz,0.3V | 68.0 | ±20 | 5.50 | 0.080 | | SDR1210-820M | 1KHz,0.3V | 82.0 | ±20 | 6.20 | 0.080 | | SDR1210-101M | 1KHz,0.3V | 100.0 | ±20 | 7.00 | 0.080 | | SDR1210-121M | 1KHz,0.3V | 120.0 | ±20 | 8.00 | 0.075 | | SDR1210-151M | 1KHz,0.3V | 150.0 | ±20 | 9.30 | 0.070 | | SDR1210-181M | 1KHz,0.3V | 180.0 | ±20 | 10.20 | 0.065 | | SDR1210-221M | 1KHz,0.3V | 220.0 | ±20 | 11.80 | 0.065 |
特点 FEATURES:
数量/卷：2,500PCS。

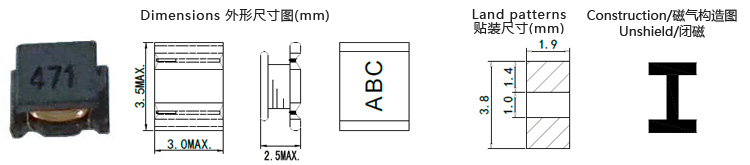

Quantity/reel: 2,500PCS. 产品小型化，方形3.5mm×3.0mm，高度2.5mm MAX。
Small product, quadrate 3.5mm×3.0mm, Height 2.5mm MAX. 载带包装，适用于SMT。
Carrier tape packing, use for SMT. 适用于回流焊SMT工艺。
Suitable for reflow soldering. 广泛应用于升降压转换器、液晶显示、笔记本电脑、个人掌上记事本、MP3/MP4播放器、数码相机、便携式光碟机等。
Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital camera/Portable CDR-W etc.
|
