CD32
【Detailed Description】



Model No.
     品名
Test Condition
     测试条件
Inductance
     电感(μH)
Tolerance
     公差(%)
DC resistance
     直流电阻MAX(Ω)
Rated current
     额定电流(A)
CD32-1R0M100KHz,0.3V1.0±200.0353.340
CD32-2R2M100KHz,0.3V2.2±200.0592.350
CD32-3R3M100KHz,0.3V3.3±200.0981.830
CD32-4R7M100KHz,0.3V4.7±200.1371.500
CD32-5R6M100KHz,0.3V5.6±200.1571.360
CD32-6R8M100KHz,0.3V6.8±200.1961.220
CD32-8R2M100KHz,0.3V8.2±200.2301.090
CD32-100M1KHz,0.3V10.0±200.2860.950
CD32-120M1KHz,0.3V12.0±200.3220.880
CD32-150M1KHz,0.3V15.0±200.3980.820
CD32-180M1KHz,0.3V18.0±200.5200.760
CD32-220M1KHz,0.3V22.0±200.6600.630
CD32-270M1KHz,0.3V27.0±200.7600.620
CD32-330M1KHz,0.3V33.0±200.8700.560
CD32-390M1KHz,0.3V39.0±201.1000.510
CD32-470M1KHz,0.3V47.0±201.2500.470
CD32-560M1KHz,0.3V56.0±201.5900.420
CD32-680M1KHz,0.3V68.0±201.8200.380
CD32-820M1KHz,0.3V82.0±202.4400.340
CD32-101M1KHz,0.3V100.0±202.8400.310
CD32-121M1KHz,0.3V120.0±203.1900.280
CD32-151M1KHz,0.3V150.0±204.2000.160


特       长:
 FEATURES:

  • 数量/卷:2,500PCS。
       Quantity/reel: 2,500PCS.

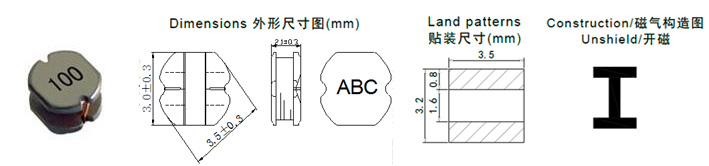

  • 产品小型化,标准外圆3.5mm(3.8mm Max)高度2.1mm TYP。
       Small product, rotundity 3.5mm  type (3.8mm  Maximum) Height 2.1mm TYP.

  • 载带包装,适用于SMT。
       Carrier tape packing, use for SMT.

  • 适用于回流焊SMT工艺。
       Suitable for reflow soldering.

  • 广泛应用于升降压转换器、液晶显示、笔记本电脑、个人掌上记事本、MP3/MP4播放器、数码相机、便携式光碟机等。
       Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital  camera/Portable CDR-W etc.
