CDRH5D18
Model No.
品名 | Test Condition
测试条件 | Inductance
电感(μH) | Tolerance
公差(%) | DC resistance
直流电阻MAX(Ω) | Rated current
额定电流(A) | | CDRH5D18-3R3M | 100KHz,0.3V | 3.3 | ±20 | 0.053 | 2.00 | | CDRH5D18-4R7M | 100KHz,0.3V | 4.7 | ±20 | 0.060 | 1.90 | | CDRH5D18-5R6M | 100KHz,0.3V | 5.6 | ±20 | 0.076 | 1.60 | | CDRH5D18-6R8M | 100KHz,0.3V | 6.8 | ±20 | 0.105 | 1.40 | | CDRH5D18-100M | 100KHz,0.3V | 10.0 | ±20 | 0.124 | 1.20 | | CDRH5D18-120M | 100KHz,0.3V | 12.0 | ±20 | 0.153 | 1.10 | | CDRH5D18-180M | 100KHz,0.3V | 18.0 | ±20 | 0.210 | 0.85 | | CDRH5D18-220M | 100KHz,0.3V | 22.0 | ±20 | 0.290 | 0.80 | | CDRH5D18-330M | 100KHz,0.3V | 33.0 | ±20 | 0.386 | 0.65 | | CDRH5D18-390M | 100KHz,0.3V | 39.0 | ±20 | 0.520 | 0.57 | | CDRH5D18-470M | 100KHz,0.3V | 47.0 | ±20 | 0.595 | 0.54 | | CDRH5D18-560M | 100KHz,0.3V | 56.0 | ±20 | 0.665 | 0.50 | | CDRH5D18-680M | 100KHz,0.3V | 68.0 | ±20 | 0.840 | 0.43 | | CDRH5D18-820M | 100KHz,0.3V | 82.0 | ±20 | 0.978 | 0.41 | | CDRH5D18-101M | 100KHz,0.3V | 100.0 | ±20 | 1.200 | 0.36 | | CDRH5D18-121M | 100KHz,0.3V | 120.0 | ±20 | 1.500 | 0.33 | | CDRH5D18-151M | 100KHz,0.3V | 150.0 | ±20 | 1.710 | 0.31 | | CDRH5D18-181M | 100KHz,0.3V | 180.0 | ±20 | 3.380 | 0.21 | | CDRH5D18-221M | 100KHz,0.3V | 220.0 | ±20 | 4.340 | 0.18 |
特长：
FEATURES:
数量/卷：2,500PCS。

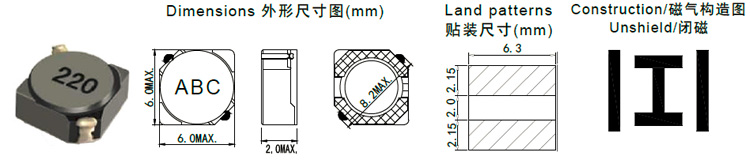

Quantity/reel: 2,500PCS. 产品小型化，方形6.0mm MAX，高度2.0mm MAX。
Small product, quadrate 6.0mm MAX. Height 2.0mm MAX. 载带包装，适用于SMT。
Carrier tape packing, use for SMT. 适用于回流焊SMT工艺。
Suitable for reflow soldering. 广泛应用于数码相机、扫描仪、升降压转换器、磁带录像机电源、液晶显示组件、便携终端设备、笔记本电脑等。
Widely use in Digital camera & scanner/DC-DC converter/Power supply for VTR/LCD monitor/Portable terminal equipment/Notebook etc.
|
