CDRH6D28
Model No.
品名 | Test Condition
测试条件 | Inductance
电感(μH) | Tolerance
公差(%) | DC resistance
直流电阻MAX(Ω) | Rated current
额定电流(A) | | CDRH6D28-3R3M | 100KHz,0.3V | 3.3 | ±20 | 0.026 | 2.80 | | CDRH6D28-4R7M | 100KHz,0.3V | 4.7 | ±20 | 0.031 | 2.40 | | CDRH6D28-100M | 100KHz,0.3V | 10.0 | ±20 | 0.065 | 1.70 | | CDRH6D28-150M | 100KHz,0.3V | 15.0 | ±20 | 0.084 | 1.40 | | CDRH6D28-180M | 100KHz,0.3V | 18.0 | ±20 | 0.095 | 1.32 | | CDRH6D28-220M | 100KHz,0.3V | 22.0 | ±20 | 0.128 | 1.20 | | CDRH6D28-330M | 100KHz,0.3V | 33.0 | ±20 | 0.165 | 0.97 | | CDRH6D28-470M | 100KHz,0.3V | 47.0 | ±20 | 0.238 | 0.80 | | CDRH6D28-560M | 100KHz,0.3V | 56.0 | ±20 | 0.277 | 0.73 | | CDRH6D28-680M | 100KHz,0.3V | 68.0 | ±20 | 0.304 | 0.65 | | CDRH6D28-820M | 100KHz,0.3V | 82.0 | ±20 | 0.390 | 0.60 | | CDRH6D28-101M | 100KHz,0.3V | 100.0 | ±20 | 0.535 | 0.54 | | CDRH6D28-121M | 100KHz,0.3V | 120.0 | ±20 | 0.750 | 0.51 | | CDRH6D28-151M | 100KHz,0.3V | 150.0 | ±20 | 0.950 | 0.47 | | CDRH6D28-181M | 100KHz,0.3V | 180.0 | ±20 | 1.200 | 0.41 | | CDRH6D28-221M | 100KHz,0.3V | 220.0 | ±20 | 1.500 | 0.37 | | CDRH6D28-271M | 100KHz,0.3V | 270.0 | ±20 | 1.700 | 0.33 | | CDRH6D28-331M | 100KHz,0.3V | 330.0 | ±20 | 2.150 | 0.28 | | CDRH6D28-471M | 100KHz,0.3V | 470.0 | ±20 | 3.150 | 0.21 | | CDRH6D28-681M | 100KHz,0.3V | 680.0 | ±20 | 5.150 | 0.20 |
特长：
FEATURES:
数量/卷：1,500PCS。

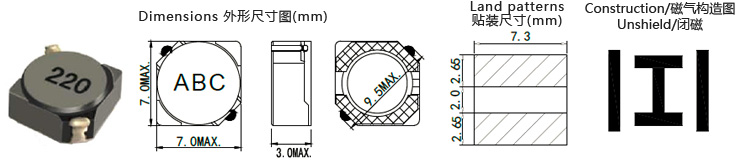

Quantity/reel: 1,500PCS. 产品小型化，方形7.0mm MAX，高度3.0mm MAX。
Small product, quadrate 7.0mm MAX. Height 3.0mm MAX. 载带包装，适用于SMT。
Carrier tape packing, use for SMT. 适用于回流焊SMT工艺。
Suitable for reflow soldering. 广泛应用于数码相机、扫描仪、升降压转换器、磁带录像机电源、液晶显示组件、便携终端设备、笔记本电脑等。
Widely use in Digital camera & scanner/DC-DC converter/Power supply for VTR/LCD monitor/Portable terminal equipment/Notebook etc.
|
