SDR1812
【Detailed Description】

Model No.
     品名
Test Condition
     测试条件
Inductance
     电感(μH)
Tolerance
     公差(%)
DC resistance
     直流电阻MAX(Ω)
Rated current
     额定电流(A)
SDR1812-1R0M100KHz,0.3V1.0±200.200.500
SDR1812-2R2M100KHz,0.3V2.2±200.300.500
SDR1812-3R3M100KHz,0.3V3.3±200.350.500
SDR1812-5R6M100KHz,0.3V5.6±200.470.500
SDR1812-6R8M100KHz,0.3V6.8±200.500.450
SDR1812-8R2M100KHz,0.3V8.2±200.560.450
SDR1812-100M1KHz,0.3V10.0±200.560.400
SDR1812-150M1KHz,0.3V15.0±200.730.360
SDR1812-180M1KHz,0.3V18.0±200.820.340
SDR1812-220M1KHz,0.3V22.0±200.940.320
SDR1812-270M1KHz,0.3V27.0±201.100.300
SDR1812-330M1KHz,0.3V33.0±201.200.270
SDR1812-470M1KHz,0.3V47.0±201.500.220
SDR1812-560M1KHz,0.3V56.0±201.700.200
SDR1812-680M1KHz,0.3V68.0±201.900.180
SDR1812-820M1KHz,0.3V82.0±202.200.170
SDR1812-101M1KHz,0.3V100.0±202.500.160
SDR1812-121M1KHz,0.3V120.0±203.000.150
SDR1812-151M1KHz,0.3V150.0±203.700.130
SDR1812-181M1KHz,0.3V180.0±204.500.120
SDR1812-221M1KHz,0.3V220.0±205.400.110
SDR1812-271M1KHz,0.3V270.0±206.800.100
SDR1812-331M1KHz,0.3V330.0±208.200.095
SDR1812-471M1KHz,0.3V470.0±2011.800.080


特点 FEATURES:

  • 数量/卷:2,000PCS。
       Quantity/reel: 2,000PCS.

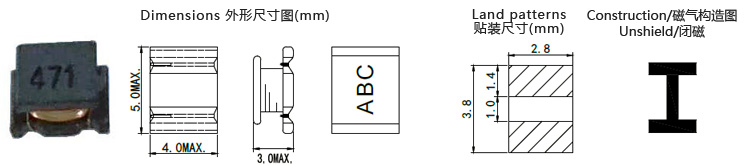

  • 产品小型化,方形5.0mm×4.0mm,高度3.0mm MAX。
       Small product, quadrate 5.0mm×4.0mm, Height 3.0mm MAX.

  • 载带包装,适用于SMT。
       Carrier tape packing, use for SMT.

  • 适用于回流焊SMT工艺。
       Suitable for reflow soldering.

  • 广泛应用于升降压转换器、液晶显示、笔记本电脑、个人掌上记事本、MP3/MP4播放器、数码相机、便携式光碟机等。
       Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital  camera/Portable CDR-W etc.
