CDRH4D18～CDRH6D38

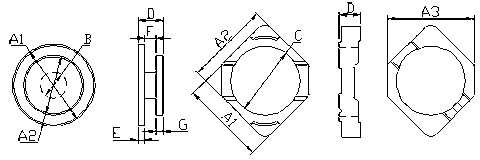

| 型号 | 产品规格 | 尺寸(mm) | | A1 | A2 | A3 | B | C | D | E | F | G | | CDRH4D18 | DR-4.6-3.3-1.7-1.6 | 4.6±0.1 | 3.3±0.1 | | 1.6±0.1 | | 1.7±0.1 | 0.45±0.1 | 0.8±0.1 | 0.45±0.1 | | RI-4.7-1.45-3.9 | 4.7±0.1 | 4.7±0.1 | 4.9±0.1 | | 3.9±0.1 | 1.45±0.1 | | | | | CDRH4D18 | DR-4.6-3.3-1.7-2.0 | 4.6±0.1 | 3.3±0.1 | | 2.0±0.1 | | 1.7±0.1 | 0.45±0.1 | 0.8±0.1 | 0.45±0.1 | | RI-4.7-1.45-3.9 | 4.7±0.1 | 4.7±0.1 | 4.9±0.1 | | 3.9±0.1 | 1.45±0.1 | | | | | CDRH4D22 | DR-4.6-3.3-2.1-2.0 | 4.6±0.1 | 3.3±0.1 | | 2.0±0.1 | | 2.1±0.1 | 0.4±0.1 | 1.3±0.1 | 0.4±0.1 | | RI-4.7-1.9-3.9 | 4.7±0.1 | 4.7±0.1 | 4.9±0.1 | | 3.9±0.1 | 1.9±0.1 | | | | | CDRH4D28 | DR-4.6-3.3-2.7-1.6 | 4.6±0.1 | 3.3±0.1 | | 1.6±0.1 | | 2.7±0.1 | 0.45±0.1 | 1.8±0.1 | 0.45±0.1 | | RI-4.7-2.45-3.9 | 4.7±0.1 | 4.7±0.1 | 4.9±0.1 | | 3.9±0.1 | 2.45±0.1 | | | | | CDRH4D28 | DR-4.6-3.3-2.7-2.0 | 4.6±0.1 | 3.3±0.1 | | 2.0±0.1 | | 2.7±0.1 | 0.45±0.1 | 1.8±0.1 | 0.45±0.1 | | RI-4.7-2.45-3.9 | 4.7±0.1 | 4.7±0.1 | 4.9±0.1 | | 3.9±0.1 | 2.45±0.1 | | | | | CDRH5D18 | DR-5.6-4.1-1.7-1.8 | 5.6±0.1 | 4.1±0.1 | | 1.8±0.1 | | 1.7±0.1 | 0.45±0.1 | 0.8±0.1 | 0.45±0.1 | | RI-5.7-1.45-4.7 | 5.7±0.1 | 5.7±0.1 | 5.9±0.1 | | 4.7±0.1 | 1.45±0.1 | | | | | CDRH5D18 | DR-5.6-4.1-1.7-2.0 | 5.6±0.1 | 4.1±0.1 | | 2.0±0.1 | | 1.7±0.1 | 0.45±0.1 | 0.8±0.1 | 0.45±0.1 | | RI-5.7-1.45-4.7 | 5.7±0.1 | 5.7±0.1 | 5.9±0.1 | | 4.7±0.1 | 1.45±0.1 | | | | | CDRH5D28 | DR-5.6-4.1-2.7-2.0 | 5.6±0.1 | 4.1±0.1 | | 2.0±0.1 | | 2.7±0.1 | 0.50±0.1 | 1.7±0.1 | 0.50±0.1 | | RI-5.7-2.45-4.7 | 5.7±0.1 | 5.7±0.1 | 5.9±0.1 | | 4.7±0.1 | 2.45±0.1 | | | | | CDRH5D28 | DR-5.6-4.1-2.7-2.2 | 5.6±0.1 | 4.1±0.1 | | 2.2±0.1 | | 2.7±0.1 | 0.50±0.1 | 1.7±0.1 | 0.50±0.1 | | RI-5.7-2.45-4.7 | 5.7±0.1 | 5.7±0.1 | 5.9±0.1 | | 4.7±0.1 | 2.45±0.1 | | | | | CDRH6D28 | DR-6.6-4.8-2.7-2.3 | 6.6±0.1 | 4.8±0.1 | | 2.3±0.1 | | 2.7±0.1 | 0.5±0.1 | 1.7±0.1 | 0.5±0.1 | | RI-6.7-2.5-5.6 | 6.7±0.15 | 6.7±0.15 | 7.0±0.15 | | 5.6±0.15 | 2.5±0.1 | | | | | CDRH6D28 | DR-6.6-4.8-2.7-2.6 | 6.6±0.1 | 4.8±0.1 | | 2.6±0.1 | | 2.7±0.1 | 0.50±0.1 | 1.7±0.1 | 0.5±0.1 | | RI-6.7-2.5-5.6 | 6.7±0.15 | 6.7±0.15 | 7.0±0.15 | | 5.6±0.15 | 2.5±0.1 | | | | | CDRH6D38 | DR-6.6-4.8-3.7-2.6 | 6.6±0.1 | 4.8±0.1 | | 2.6±0.1 | | 3.7±0.1 | 0.5±0.1 | 2.7±0.1 | 0.5±0.1 | | RI-6.7-3.5-5.55 | 6.7±0.15 | 6.7±0.15 | 7.0±0.15 | | 5.6±0.15 | 3.5±0.1 | | | | | CDRH6D38 | DR-6.6-4.8-3.7-2.75 | 6.6±0.1 | 4.8±0.1 | | 2.75±0.1 | | 3.7±0.1 | 0.5±0.1 | 2.7±0.1 | 0.5±0.1 | | RI-6.7-3.5-5.55 | 6.7±0.15 | 6.7±0.15 | 7.0±0.15 | | 5..6±0.15 | 3.5±0.1 | | | |
|
