CDRH63B～CDRH74B

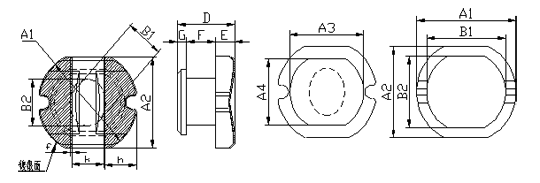

| 型号 | 产品规格 | 尺寸 | | A1 | A2 | A3 | A4 | D | B1 | B2 | E | F | G | | CDRH63B | DR-6.2-4.45-3.2-2.2 | 6.2±0.1 | 5.6±0.1 | 4.45±0.1 | 4.0±0.1 | 3.2±0.1 | 2.2±0.1 | 2.7±0.15 | 1.0±0.15 | 1.5±0.15 | 0.7±0.15 | | DR-6.2-4.45-3.2-2.5 | 6.2±0.1 | 5.6±0.1 | 4.45±0.1 | 4.0±0.1 | 3.2±0.1 | 2.5±0.1 | 2.7±0.15 | 1.0±0.15 | 1.5±0.15 | 0.7±0.15 | | DR-6.2-4.45-3.2-2.7 | 6.2±0.1 | 5.6±0.1 | 4.45±0.1 | 4.0±0.1 | 3.2±0.1 | 2.7±0.1 | 2.7±0.15 | 1.0±0.15 | 1.5±0.15 | 0.7±0.15 | | R I-6.2-2.2-4.9 | 6.2±0.1 | 5.7±0.1 | | | 2.2±0.1 | 4.9±0.1 | 4.45±0.1 | | | | | CDRH74B | DR7.8-5.75-4.5-3.2 | 7.80±0.1 | 7.0±0.1 | 5.75±0.1 | 5.0±0.1 | 4.50±0.15 | 3.20±0.15 | 3.7±0.20 | 1.4±0.15 | 2.3±0.15 | 0.8±0.15 | | DR7.8-5.75-4.5-3.5 | 7.80±0.1 | 7.0±0.1 | 5.75±0.1 | 5.0±0.1 | 4.50±0.15 | 3.50±0.15 | 3.7±0.20 | 1.4±0.15 | 2.3±0.15 | 0.8±0.15 | | RI7.8-3.1-6.2 | 7.80±0.1 | 7.0±0.1 | | | 3.1±0.15 | 6.2±0.15 | 5.5±0.15 | | | |
|
