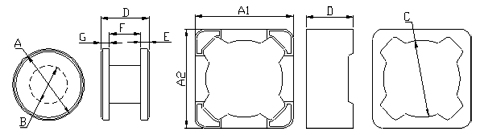

CDRH62~CDRH74
![](/images/p/cdrh_4_02.gif)
型号 | 产品规格 | 尺寸(mm) | A1 | A2 | B | C | D | E | F | G | CDRH62 | DR-4-2.4-2.0 | 4.0±0.1 | | 2.0±0.1 | | 2.4±0.1 | 0.55±0.1 | 1.3±0.1 | 0.55±0.1 | RI-6.2-2.3-4.4 | 6.2±0.1 | 5.9±0.1 | | 4.4±0.1 | 2.3±0.1 | | | | CDRH64 | DR-4-4.4-2.4 | 4.0±0.1 | | 2.4±0.1 | | 4.4±0.1 | 0.60±0.1 | 3.2±0.1 | 0.60±0.1 | RI-6.2-2.3-4.4 | 6.2±0.1 | 5.9±0.1 | | 4.4±0.10 | 4.3±0.1 | | | | CDRH72 | DR-5.3-1.8-2.8 | 5.3±0.1 | | 2.8±0.12 | | 1.8±0.1 | 0.45±0.1 | 0.9±0.1 | 0.45±0.1 | RI-7.3-1.7-5.7 | 7.3±0.15 | 7.3±0.15 | | 5.7±0.15 | 1.7±0.1 | | | | CDRH73 | DR-5.3-2.8-2.5 | 5.3±0.1 | | 2.5±0.12 | | 2.8±0.1 | 0.65±0.1 | 1.5±0.1 | 0.65±0.1 | RI-7.3-2.7-5.7 | 7.3±0.15 | 7.3±0.15 | | 5.7±0.15 | 2.7±0.1 | | | | CDRH73 | DR-5.3-2.8-2.7 | 5.3±0.1 | | 2.7±0.12 | | 2.8±0.1 | 0.65±0.1 | 1.5±0.1 | 0.65±0.1 | RI-7.3-2.7-5.7 | 7.3±0.15 | 7.3±0.15 | | 5.7±0.15 | 2.7±0.1 | | | | CDRH74 | DR-5.3-3.7-2.6 | 5.3±0.1 | | 2.6±0.12 | | 3.7±0.1 | 0.65±0.1 | 2.4±0.1 | 0.65±0.1 | RI-7.3-3.5-5.7 | 7.3±0.15 | 7.3±0.15 | | 5.7±0.15 | 3.5±0.1 | | | | CDRH74 | DR-5.3-3.7-2.8 | 5.3±0.1 | | 2.8±0.12 | | 3.7±0.1 | 0.65±0.1 | 2.4±0.1 | 0.65±0.1 | RI-7.3-3.5-5.7 | 7.3±0.15 | 7.3±0.15 | | 5.7±0.15 | 3.5±0.1 | | | | CDRH74 | DR-5.3-3.7-3.0 | 5.3±0.1 | | 3.0±0.12 | | 3.7±0.1 | 0.65±0.1 | 2.4±0.1 | 0.65±0.1 | RI-7.3-3.6-5.7 | 7.3±0.15 | 7.3±0.15 | | 5.7±0.15 | 3.5±0.1 | | | |
|
