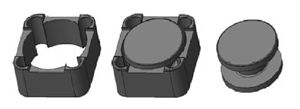

CDRH123～CDRH129

| 型号 | 产品规格 | 尺寸（mm） | | A1 | A2 | B | C | D | E | F | G | | CDRH123 | DR-10-3.0-5.0 | 10±0.15 | | 5.0±0.15 | | 3.0±0.1 | 0.75±0.1 | 1.5±0.1 | 0.75±0.1 | | RI-12-3.0-10.5 | 12.0±0.2 | 12.0±0.2 | | 10.5±0.2 | 3.0±0.1 | | | | | CDRH124 | DR-10-3.9-4.8 | 10±0.15 | | 4.8±0.15 | | 3.9±0.1 | 0.9±0.1 | 2.1±0.1 | 0.9±0.1 | | RI-12-3.7-10.5 | 12.0±0.2 | 12.0±0.2 | | 10.5±0.2 | 3.7±0.1 | | | | | CDRH125 | DR-10-5.3-5.2 | 10±0.15 | | 5.2±0.15 | | 5.2±0.1 | 1.05±0.1 | 3.1±0.1 | 1.05±0.1 | | RI-12-5.1-10.5 | 12.0±0.2 | 12.0±0.2 | | 10.5±0.2 | 5.1±0.2 | | | | | CDRH125 | DR-10-5.3-5.5 | 10±0.15 | | 5.5±0.15 | | 5.2±0.1 | 1.05±0.1 | 3.1±0.1 | 1.05±0.1 | | RI-12-5.1-10.5 | 12.0±0.2 | 12.0±0.2 | | 10.5±0.2 | 5.1±0.2 | | | | | CDRH126 | DR-10-6.1-5.2 | 10±0.15 | | 5.2±0.15 | | 6.1±0.1 | 1.05±0.1 | 4.0±0.1 | 1.05±0.1 | | RI-12-6-10.5 | 12.0±0.2 | 12.0±0.2 | | 10.5±0.2 | 6.0±0.2 | | | | | CDRH127 | DR-10-7.1-6.3 | 10.0±0.15 | | 6.0±0.15 | | 7.1±0.1 | 1.1±0.1 | 4.9±0.1 | 1.1±0.1 | | RI-12-7-10.5 | 12.0±0.2 | 12.0±0.2 | | 10.5±0.2 | 7.0±0.2 | | | | | CDRH127 | DR-10-7.1-6.3 | 10.0±0.15 | | 6.2±0.15 | | 7.1±0.1 | 1.1±0.1 | 4.9±0.1 | 1.1±0.1 | | RI-12-7-10.5 | 12.0±0.2 | 12.0±0.2 | | 10.5±0.2 | 7.0±0.2 | | | | | CDRH129 | DR-10-9.0-6.2 | 10.0±0.15 | | 6.2±0.15 | | 9.0±0.1 | 1.15±0.1 | 6.7±0.1 | 1.15±0.1 | | R I-12-8.7-10.5 | 12.0±0.2 | 12.0±0.2 | | 10.5±0.2 | 8.7±0.2 | | | |
|
