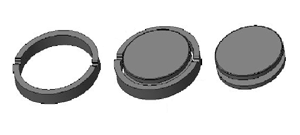

CDRH5D12～CDRH10D25

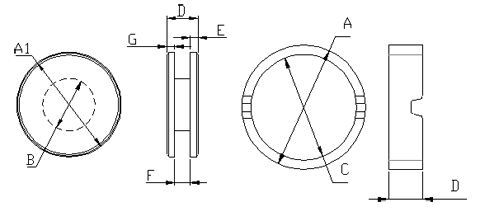

| 型号 | 产品规格 | 尺寸（mm） | | A | B | C | D | E | F | G | | CDRH5D12 | DR-3.8-1.1-1.9 | 3.8±0.1 | 1.9±0.1 | | 1.1±0.1 | 0.3±0.1 | 0.5±0.1 | 0.3±0.1 | | RI-5.0-0.8-4.175 | 5.0±0.1 | | 4.175±0.1 | 0.8±0.1 | | | | | CDRH6D10 | DR-4.8-0.9-2.9 | 4.8±0.1 | 2.9±0.1 | | 0.9±0.1 | 0.275±0.1 | 0.35±0.1 | 0.275±0.1 | | RI-6.0-0.6-5.175 | 6.0±0.1 | | 5.175±0.1 | 0.6±0.1 | | | | | CDRH6D12 | DR-4.8-1.1-2.4 | 4.8±0.1 | 2.4±0.1 | | 1.1±0.1 | 0.30±0.1 | 0.5±0.1 | 0.30±0.1 | | RI-6.0-0.8-5.175 | 6.0±0.1 | | 5.175±0.1 | 0.8±0.1 | | | | | CDRH7D15 | DR-5.62-1.42-2.6 | 5.62±0.1 | 2.6±0.1 | | 1.42±0.1 | 0.40±0.1 | 0.62±0.1 | 0.40±0.1 | | RI-7.0-1.0-6.05 | 7.0±0.15 | | 6.05±0.15 | 1.0±0.1 | | | | | CDRH7D18 | DR-5.62-1.65-2.8 | 5.62±0.1 | 2.8±0.1 | | 1.65±0.1 | 0.4±0.1 | 0.85±0.1 | 0.4±0.1 | | RI-7.0-1.2-6.05 | 7.0±0.15 | | 6.05±0.15 | 1.2±0.1 | | | | | CDRH7D20 | DR-5.62-1.9-2.8 | 5.62±0.1 | 2.8±0.1 | | 1.9±0.1 | 0.43±0.1 | 1.05±0.1 | 0.42±0.1 | | RI-7.0-1.5-6.05 | 7.0±0.15 | | 6.05±0.15 | 1.5±0.1 | | | | | CDRH7D25 | DR-5.62-2.35-2.85 | 5.62±0.1 | 2.85±0.1 | | 2.35±0.1 | 0.5±0.1 | 1.35±0.1 | 0.5±0.1 | | RI-7.0-1.95-6.0 | 7.0±0.15 | | 6.05±0.15 | 1.95±0.1 | | | | | CDRH10D15 | DR-8.05-1.38-4.4 | 8.05±0.1 | 4.4±0.1 | | 1.38±0.1 | 0.39±0.1 | 0.6±0.1 | 0.39±0.1 | | RI-10-1.0-8.5 | 10±0.15 | | 8.5±0.15 | 1.0±0.1 | | | | | CDRH10D18 | DRA-8.05-1.68-4.4 | 8.05±0.1 | 4.4±0.1 | | 1.68±0.1 | 0.45±0.1 | 0.78±0.1 | 0.45±0.1 | | RI-10-1.3-8.5 | 10±0.15 | | 8.5±0.15 | 1.3±0.1 | | | | | CDRH10D25 | DRA-8.05-2.3-4.4 | 8.05±0.1 | 4.4±0.1 | | 2.3±0.1 | 0.5±0.1 | 1.3±0.1 | 0.5±0.1 | | RI-10-1.8-8.5 | 10±0.15 | | 8.5±0.15 | 1.8±0.1 | | | |
|
