CDRH8D28
Model No.
品名 | Test Condition
测试条件 | Inductance
电感(μH) | Tolerance
公差(%) | DC resistance
直流电阻MAX(mΩ) | Rated current
额定电流(A) | | CDRH8D28-2R5M | 100KHz,0.3V | 2.5 | ±20 | 15.6 | 4.50 | | CDRH8D28-3R3M | 100KHz,0.3V | 3.3 | ±20 | 18.2 | 4.00 | | CDRH8D28-4R7M | 100KHz,0.3V | 4.7 | ±20 | 24.7 | 3.40 | | CDRH8D28-100M | 100KHz,0.3V | 10.0 | ±20 | 47.0 | 2.50 | | CDRH8D28-150M | 100KHz,0.3V | 15.0 | ±20 | 69.0 | 1.90 | | CDRH8D28-220M | 100KHz,0.3V | 22.0 | ±20 | 99.0 | 1.60 | | CDRH8D28-330M | 100KHz,0.3V | 33.0 | ±20 | 156.0 | 1.30 | | CDRH8D28-470M | 100KHz,0.3V | 47.0 | ±20 | 195.0 | 1.15 | | CDRH8D28-680M | 100KHz,0.3V | 68.0 | ±20 | 286.0 | 0.92 | | CDRH8D28-101M | 100KHz,0.3V | 100.0 | ±20 | 430.0 | 0.75 |
特长：
FEATURES:
数量/卷：1,000PCS。

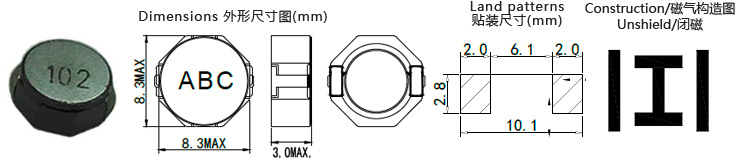

Quantity/reel: 1,000PCS. 耐大电流，低直流电阻，八角形8.3mm MAX，高度3.0mm MAX。
High rated current & Low DCR, octagonal 8.3mm MAX. Height 3.0mm MAX. 载带包装，适用于SMT。
Carrier tape packing, use for SMT. 适用于回流焊SMT工艺。
Suitable for reflow soldering. 广泛应用于电源设备、数码相机、扫描仪、升降压转换、CD-ROM、DVD播放器、笔记本电脑、主板和显卡等。
Widely use in Batter powered equipment/Digital camera & scanner/DC-DC converter/CD-ROM & DVD/Laptop & Notebook / UGA displaycard etc.
|
